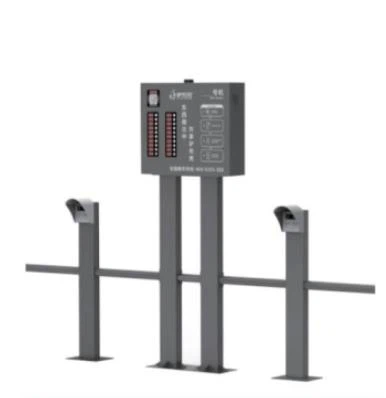

Outdoor Intelligent Charging Pile:
These types are suitable for outdoor charging piles
1) Model: OG1055
Outdoor 10-line Intelligent charging pile
The 0G1020 model outdoor complete unit consists of main machine, supporting socket, metal column and rain cover.10 electric motorcycle can be charged at the same time.
| Input rated voltage | AC220V/50Hz |
| Output rated voltage | AC220V/50Hz |
| Max. current for single line | 4.5A |
| Max. total output power | 4400W |
| Stand-by power | 3W |
| Mode of payment | Card / QR code |
| Network type | 4G/WiFi/Ethernet/Single machine |
| Dimension | Main machine: 1500550 230mm Pile: 1000 100 150mm |
| Protective capability | Waterproof and dust-proof Flame retardant |

2) Model: OG2042
Outdoor 20-line Intelligent charging pile
The outdoor 20-line complete unit is waterproof and dust-proof. The metal plate material is durable. 20 electric motorcycle can be charged at the same time.
| Input rated voltage | AC220V/50Hz |
| Output rated voltage | AC220V/50Hz |
| Max. current for single line | 4.5A |
| Max. total output power | 8800W |
| Stand-by power | 5W |
| Mode of payment | Card / QR code |
| Network type | 4G/WiFi/Ethernet/Single machine |
| Dimension | Main machine: 1200540 160mm Column: 840 200 160mm |
| Protective capability | Waterproof and dust-proof |

3) Model:OG2000
Outdoor 20-line Intelligent charging pile
The outdoor 20-line complete unit can protect is waterproof and dust-proof. 20 electric motorcycle can be charged at the same time. Surveillance cameras can be added and the advertising space can bring in extra revenue.
| Input rated voltage | AC220V/50Hz |
| Output rated voltage | AC220V/50Hz |
| Max. current for single line | 4.5A |
| Max. total output power | 8800W |
| Stand-by power | 5w |
| Mode of payment | Card / QR code |
| Dimension | Main machine: 2000 1000 200mm Pile: 870280 180mm |
| Material and technology | Plastic sprayed metal shell |
| Protective capability | Waterproof and dust-proof |
